5,6 mm Small Finger Probes - Test Probe 19 of IEC61032

Measurement & Analysis Instruments > Testing Equipment

Contact Person: Eason Wang

Skype: nina.she@outlook.com

Tel: +86-755-33168386

Item No.: Item No.: LX-1219
Include CNAS & ILAC Calibration Certificate
E-mail: sales@china-item.com
Made in China
Please contact us for more detailed pdf files.

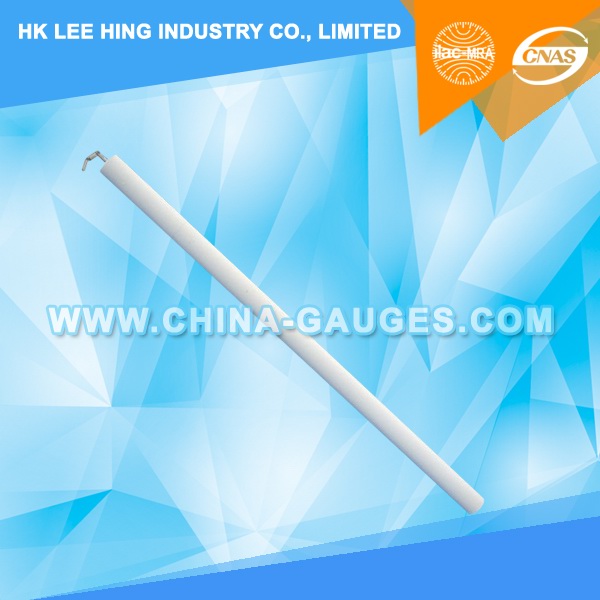

Small Finger Probe 5,6 test probe 19 of iec 61032

IEC 61032 Figure 13 – Test probe 19 (small finger probe ∅ 5,6)

– Finger: metal material

– Handle: insulating material

The extension of the handle represents the arm of the child.

The handle is provided with an extension, 464,3 mm long and the probe should be applied with or without this extension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of 36 months or less.

Company introduction

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go no go gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, spring hammer, iec 61032 test finger, AC hipot tester, iec test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plugs and Socket Outlet Gauge, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
