E26 Go-NoGo gauge of Finished Lamp Caps

Measurement & Analysis Instruments > Testing Equipment

Contact Person: Eason Wang

Skype: nina.she@outlook.com

Tel: +86-755-33168386

Item No.: Item No.: LX-E26GN
Include CNAS & ILAC Calibration Certificate
E-mail: sales@china-item.com
Made in China
Please contact us for more detailed pdf files.

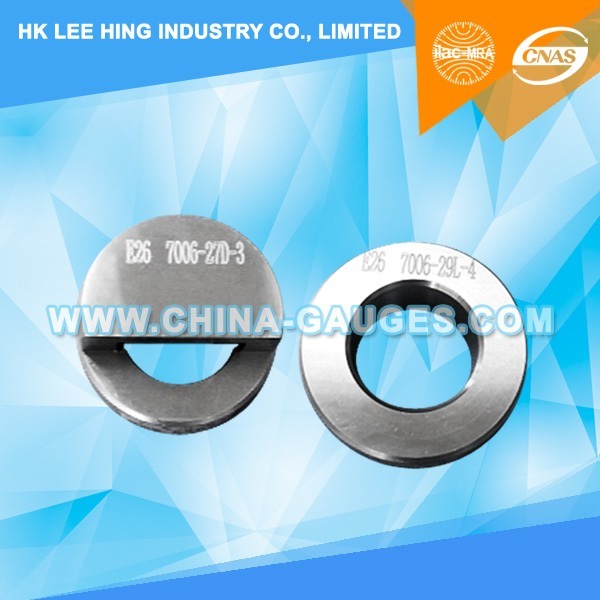

E26 Go No Go Gauge of Finished Lamp Caps Include:


1) IEC60061-3: 7006-27D-3 E26 GO Gauge for Caps;

Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E26 caps on finished lamps.


Testing:

When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall touch surface X. When the lamp is removed from the gauge, at least two full turns shall be required to disengage the threads.





2) IEC60061-3: 7006-29L-4 No Go Gauge for Caps E26;

Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of E26 caps on finished lamps.



Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the central contact shall not project beyond surface X. Only the weight of the gauge itself shall be used in the test.
